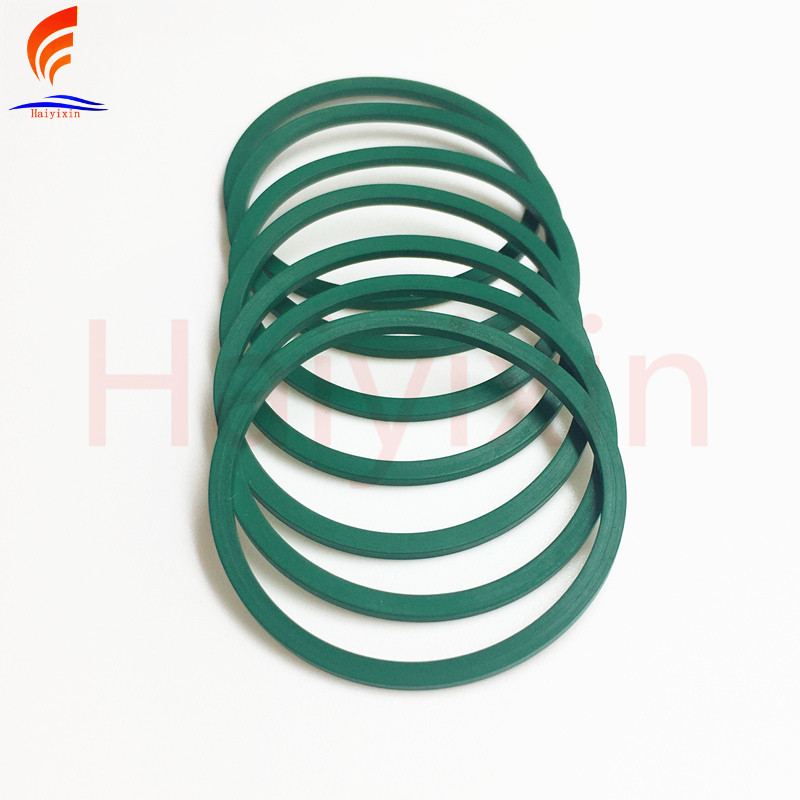

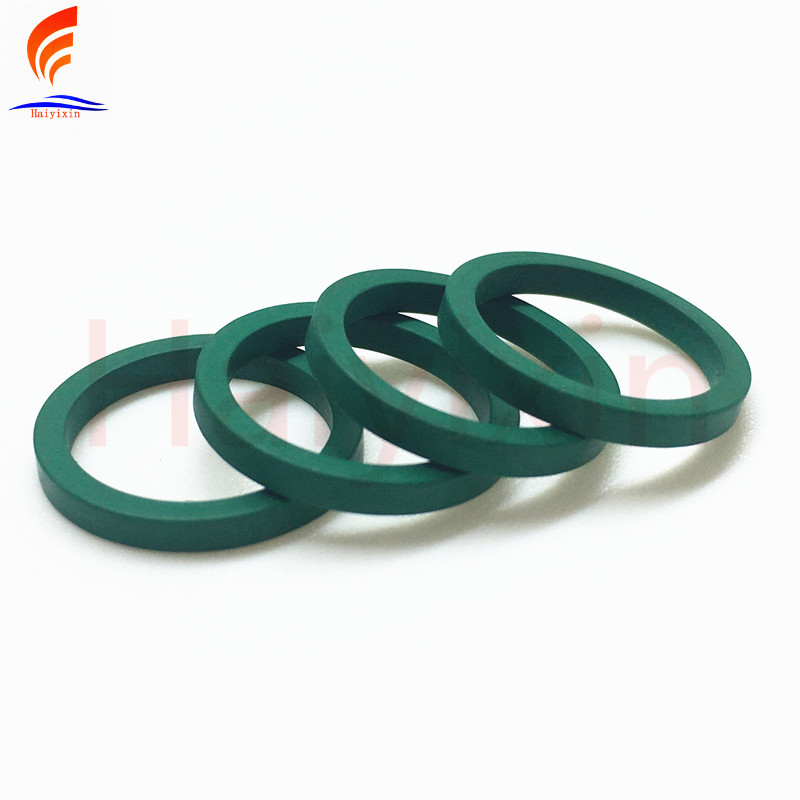

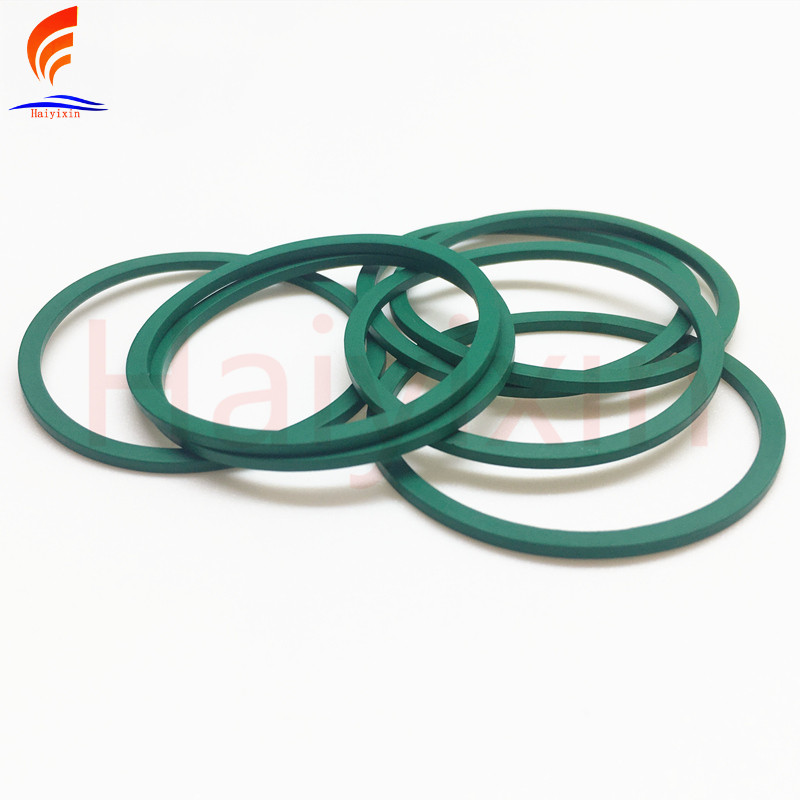

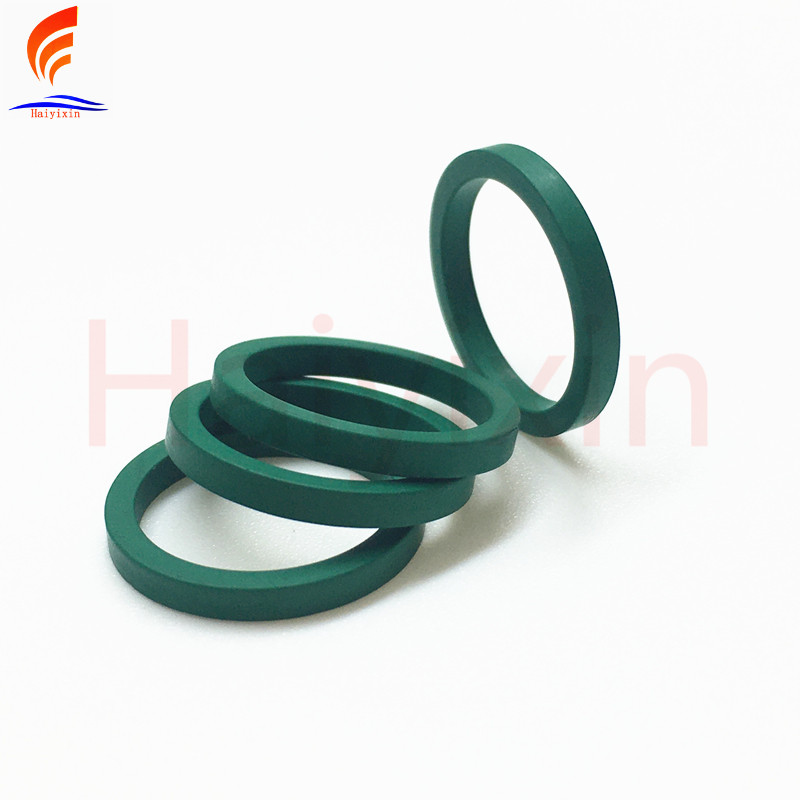

FKM Rubber Gaskets - High-Performance Sealing Solutions for Extreme Environments

FKM (Fluoroelastomer) rubber gaskets stand out as the gold standard for sealing applications that require resistance to extreme temperatures, harsh chemicals, and high pressures. Unlike conventional rubber gaskets, our premium FKM gaskets leverage the strong carbon-fluorine (C-F) bonds in their molecular structure to deliver exceptional performance in environments where other materials fail.

• Exceptional Temperature Resistance: Operates reliably from -20°C to 200°C (-4°F to 392°F) for standard grades. Special formulations can withstand short-term exposure up to 230–250°C (446–482°F), and low-temperature modified grades perform down to -30°C (-22°F).
• Superior Chemical Resistance: Excellent resistance to mineral oils, fuels, aliphatic and aromatic hydrocarbons, most acids, ozone, and weathering. Ideal for use in chemical processing, oil & gas, and automotive fuel systems.
• Low Compression Set: Maintains its shape and sealing integrity even after long-term compression, reducing the need for frequent replacements and ensuring consistent performance.
• Strong Mechanical Properties: Features excellent tear resistance, abrasion resistance, and flexibility, making it suitable for static sealing applications; specialized formulations are available for dynamic sealing needs.
• Wide Compatibility & Eco-Friendly Compliance: Complies with international standards such as ASTM D1418, ISO 1629, FDA 21 CFR 177.2600 (for food contact), and AMS 7278, meeting the strict requirements of diverse industries. Meanwhile, all products adhere to RoHS and REACH environmental directives.

We support custom dimensions, drawings, and strict tolerances to meet your specific project needs. Below are the standard material specifications for our FKM sealing products:

• Certifications: FDA, RoHS, REACH, AMS 7278, and other industry-specific certifications available upon request.
• Environmental Advantages: Manufactured with eco-friendly processes free of heavy metals and phthalates. With an excellent service life (5–10 times longer than ordinary rubber), they effectively minimize waste and support your green operation goals.

Our high-performance FKM rubber gaskets are widely used across global industrial fields, providing reliable sealing support for critical machinery:

• Chemical & Petrochemical: Chemical reaction kettles, conveying pipelines, storage tanks, and high-temperature pump valves. Suitable for harsh chemical treatments involving crude oil and natural gas.
• Automotive & Aerospace: Engine sealing, fuel system gaskets, transmission gaskets, exhaust system components, and hydraulic systems exposed to high temperatures and fuels.
• Marine & Offshore Drilling: Ship pipeline systems, offshore drilling equipment components, and marine engine components requiring strong corrosion resistance.
• General Machinery: High-temperature industrial pumps, valves, compressors, and heat exchangers requiring an extended service life.

Certification & Compliance Support: DVGW KTW-BWGL, EN16421-1, WRAS, ACS, BELGAQUA, EN861, LFGB, FDA, EN549, EN682. Material Test Report (MTR), dimensional inspection reports, and RoHS/REACH certifications can be provided upon request.

We are dedicated to delivering the highest quality FKM rubber gaskets to our customers. Our manufacturing process adheres to strict quality control standards, from premium raw material selection from trusted suppliers to final quality inspection.

Every batch of gaskets undergoes rigorous factory testing for temperature resistance, chemical compatibility, compression set, and mechanical strength, ensuring our products meet or exceed international standards.

Whether you need standard FKM gaskets or custom-engineered sealing solutions, our team of experts is ready to assist you. To receive an accurate, rapid quote, please provide the following details:

• Gasket Type: Flat, ring, O-ring, or custom shape (with drawings)
• Dimensions: Inner diameter (ID), outer diameter (OD), and thickness
• Hardness Requirement: Hardness range in Shore A
• Application Details: Operating temperature, working pressure, and contact medium
• Order Quantity & Certification Needs: (e.g., FDA, RoHS, REACH, AMS 7278)

Contact us today via email or phone, and our technical sales team will respond to your inquiry within 24 hours.
